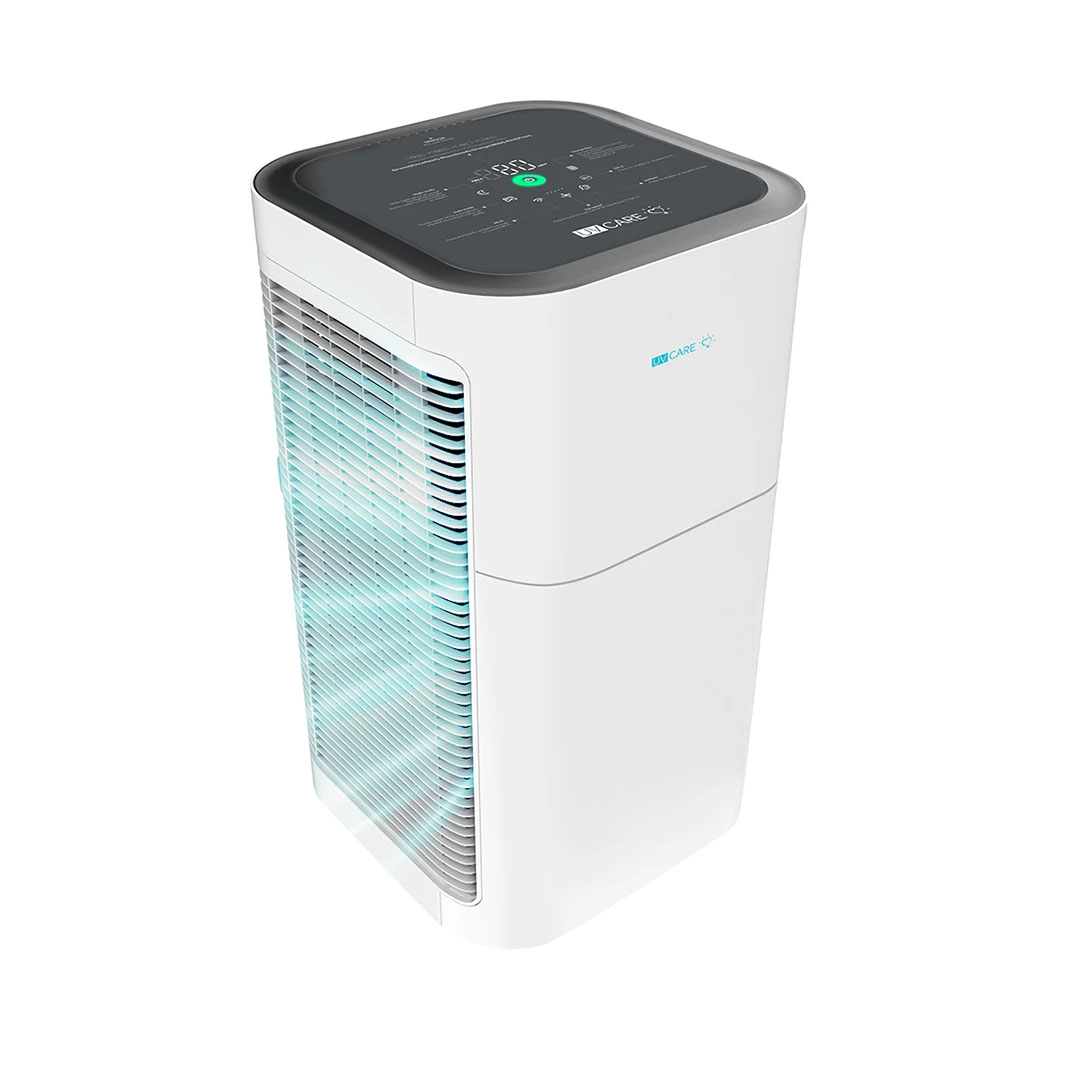

UV CARE Super Air Cleaner Pro – WHITE

Description

Purify the air in bigger spaces of up to 120 square meters via the powerful #UVCareSuperAirCleanerPro.
Its 7-Stage Filtration System includes removal of fine dust and dirt via its H13 medical-grade HEPA Filter and it also eliminates formaldehyde, smoke and odors via its Activated Carbon Filter. And during the new normal, provide added protection to everyone in your space as the #UVCareSuperAirCleanerPro also gets rid of pathogens in the air like bacteria and viruses with the 254nm germicidal lamp inside the unit.

What’s Inside The Box:
• UV Care Super Air Cleaner Pro Unit
• Power Cord
• 360 Degree Barrel Filter (Inside the unit)
• User Manual
• Warranty Card

User Guide:
• Ensure the filter is correctly installed before turning on the unit. Do not run the unit without a filter.
• Connect the power cord to the unit and plug it to a reliable 220 V power outlet to start.
• Press the power button.
• Set desired mode or function: Auto, Sleep or Adjust setting according to preference
• Unit may be used for as long as necessary even if that means running it for 24/7.

Product Features:
• Filters – Fine Nylon Mesh Pre-filter, Hepa Filter (H13), Activated Carbon Filter, Antibacterial Honeycomb Filter,
Photocatalyst Filter, Negative Ions, UVC LED Lamp
NOTE: Filter/s are not washable
• Functions – Auto, Sleep/ Smart Sleep,Wi-Fi
• Coverage Area – 120 sqm
• Hepa Filter Grade – H13
• UV-C Wavelength – 254 nm
• Negative Ions -m3 million pcs/cm3
• Clean Air Delivery Rate (CADR) – 650 m3/h
• Noise (Maximum Fan Speed) – 54 dB
• Material – ABS Plastic (Body), Quartz Glass (UV-C Lamp)
• Rated Input Power – 69 Watts
• Rated Voltage – 220 V, 60 Hz
• Power Cord Length – 1.8 Meters
• Product Dimensions – 370*370*666 mm

Operation Icons :
• Night Mode
Dims all lights on the unit’s control panel and silences the fan to almost an inaudible whisper. This can be set
manually through the control panel or via the mobile app.
• Smart Sleep
The unit will automatically enter Night Mode when there is low ambient light for 20 seconds. In turn, the unit will also
automatically exit Night Mode when ambient light turns bright for 20 seconds or more.
• Auto Mode
Unit determines what the environment needs and adjusts settings accordingly.
• Wi-Fi
Use this icon 2 ways:
To pair with the Mobile App.
Press the Wi-Fi button for 3 seconds to initiate pairing. When the Wi-Fi icon is blinking, this means that the unit has
not yet been paired with the app.
• To check real-time PM count
PM 10: Press once
PM 2.5- Press twice
PM 1- Press thrice
• Ionizer
Press the ionizer button to enable or disable the UV-C light.
• Fan Speed.
Select desired fan speed from 1-5 with 5 being the highest and 1 being the lowest.

Understanding the Filters:
• Fine Nylon Mesh Pre-filter. Traps large particles of dust, dirt, hair, and pet dander.
• Hepa Filter (H13). The H13 HEPA filter is a medical-grade air filter capable of removing a minimum of 99.95% fine
particles at the Most Penetrating Particle Size (MPPS) of 0.21 microns.
• MPPS. MPPS is the particle size at which the air filter has its lowest arrestance. Arrestance is a measure of the ability
of an air filtration device to remove synthetic dust from the air. The arrestance describes how well an air filter
removes larger particles – such as dirt, lint, hair, and dust.
European standards for rating the efficiencies of HEPA and ULPA (ultra low penetration air) filters and media are
prescribed by EN 1822(154-2). They are based on the filtration efficiency of the most penetrating particle size
(MPPS).
• Activated Carbon Filter. Removes formaldehyde, odors and smoke.
• Antibacterial Honeycomb Filter. Specially designed antibacterial layer
• Photocatalyst Filter – breaks down substances such as benzene, ammonia, TVOC etc.
***Benzene is present in paint, lacquer, varnish removers, industrial solvents, gasoline and other fuels, glues, furniture
wax, detergents, and thinners.
***Total Volatile Organic Compounds (total VOCs) are chemicals emitted from everyday items including cleaning
products & paints
• Negative Ions. Cleans the air of airborne allergens
• UVC LED Lamp. Eliminates pathogens on a DNA level through UVGI
